No U Distribution System

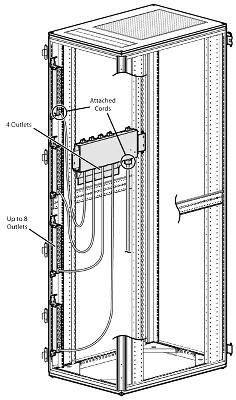

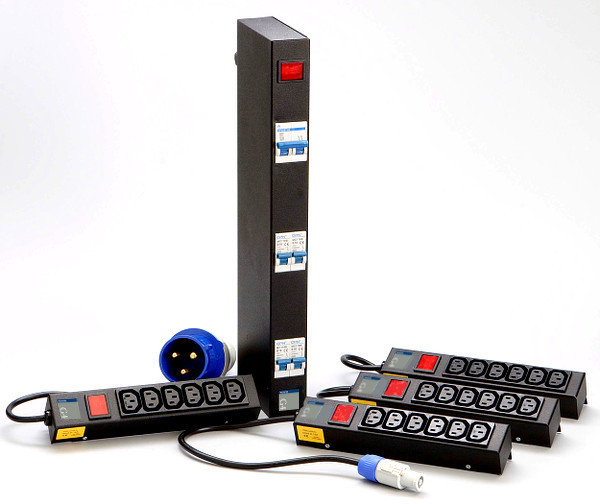

The system comprises of a central distribution box and up to 4 remote socket modules. The distribution box can be mounted between the side rails of a rack or directly as a 19" unit. Remote modules can be mounted vertically on the rack uprights.
Central Distribution Unit.
Will accept up to 32A supply via a fixed 4sqmm cable, terminated with a 32A commando plug. The unit is supplied with mounting brackets for both side mounting (No u) or 19" rack mount ears. The top (Front) face supports a 32A double pole input breaker and 4 off 16A circuit breakers, 1 for each of the remote modules together with a mains present neon indicator. The bottom (Rear) face supports 4 off 16
Remote Socket Module.
Each remote contains 6 off IEC 320 C13 connectors and a power present neon indicator. The remote is connected to the distribution box via a 2m 16A umbilical terminated with a matching twist lock connector (Other lengths by request). Each remote can be secured to the rack by its integral mounting brackets.
Options.
∗ Additional length cables available to order.
