UPS Bypass Switch
UPS Bypass Switch
The UPS Bypass Switch solves the problem of disconnecting a UPS from service, without losing power the device it is supporting.

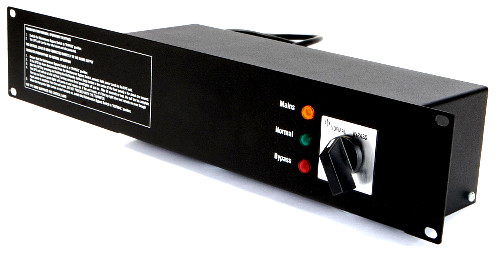

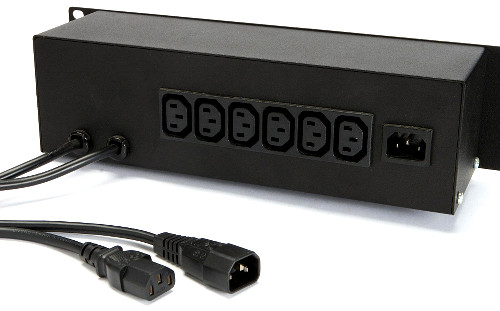

There are two leads on the rear of the Bypass Switch. one takes power from the main building supply and sends it to the UPS and the other takes the output from the UPS back into the Bypass Switch. The unit to be supported is connected directly into the rear of the Bypass Switch, allowing seamless switching between mains and backup supply. High visibility neon indicators clearly show when the unit is in bypass mode and full connection instructions are printed on the front of the case.
The unit supports multiple IEC outlets on the rear, allowing more than 1 unit to be supported, up to the maximum available current.
Two versions are available:
10A IEC connectors, rated at 2KvA.
16A rated IEC connectors, rated at 3KvA
Options:
* Additional length cables available to order.
* Bespoke connector variations available to order.
* Available as a 2u rack mounted, or free standing unit.
