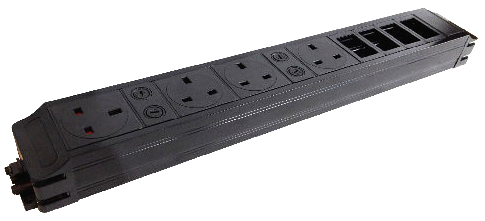

Modular Under Desk -

Power and Data Products

* Individually fused power sockets
* Complies with BS6396: 2002
* Mounting tabs
* 150mm earth lead to ring terminal

* 6C data cut-outs
* 2 or 4 port plastic body
* Wieland* input
* Cable exit via gland hole

The Power unit allows the mixing of power and data or just data using 6C data cut-outs, the power is fed by a Wieland* input, the data exits via a gland hole in the end cap. Data assemblies pre-fitted to units at PowerData Technologies.

Standard P-Pack power and data units

P-Pack 2/2 -
P-Pack 4/2 -
P-Pack 4/4 -
P-Pack 0/4 -
P-Pack 0/6 -

2 UK power sockets, 2 x 6C cut-outs with 20mm data gland hole exit
4 UK power sockets, 2 x 6C cut-outs with 20mm data gland hole exit
4 UK power sockets, 4 x 6C cut-outs with 20mm data gland hole exit
4 x 6C cut-outs with 20mm data gland hole exit
6 x 6C cut-outs with 20mm data gland hole exit

To have data assemblies pre-fitted, add /D to order code.

Power leads

START 2 -
START 3 -
START 5 -
START X -

2-metre Wieland connector to 13A plug
3-metre Wieland connector to 13A plug
5-metre Wieland connector to 13A plug
X-metre Wieland connector to 13A plug (length?)

^{*Wieland ST18/3 connector or equivalent}
