C13 / C19 IEC 320 With Individual Fuses
Additional Variations.

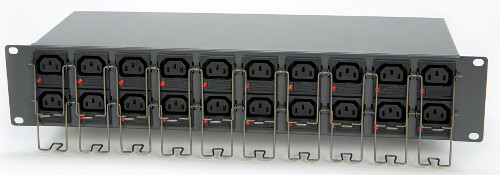

PDU’s can be manufactured to suit individual project requirements. The model above is a 2u 20w individually fused unit with optional cable retaining clips. If you have a specific requirement, please contact our sales office for a quote.
Description:
The new individually fused C13 & C19 range of rack mounted PDUs provides circuit protection for each outlet and limits the potential for loosing the whole PDU in the event of equipment failure. Each socket has an integral 20mm fuse holder and neon status indicator which shows the fuse is OK. If the fuse blows, the neon is extinguished.
Constructed in a 19" rack mountable steel enclosure, all models are fitted with IEC 320/C13/C19 outlets and fed via a fixed mains lead, with a choice of mains input connector.
Internal wiring is in Tri-rated cable and rated at 16A as standard, with the option of 32A rating, terminated with a BS4343 Commando style connector.
- * Units can be supplied switched or with neon indicator only.
- * Optional Digital Ammeter.
- * Optional cable retaining clips.
- * Custom input leads.
Units are fully earth bonded and fitted with external grounding posts.
