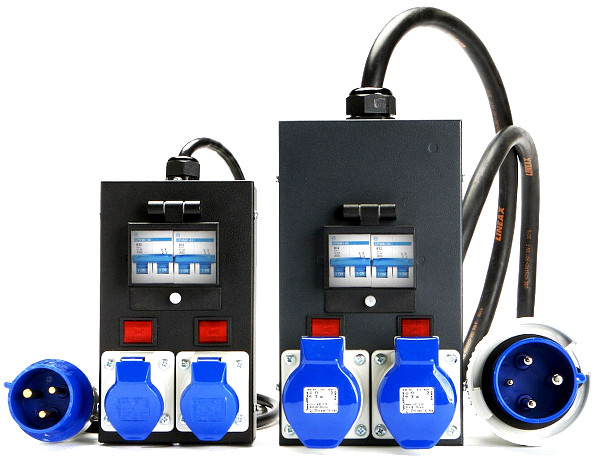

Single Phase Splitter Box

63Amp and 32Amp

The single phase splitter box takes a given input current and divides it across multiple outputs. This is particularly useful when taking power direct from a generator or back up power supply and distributing it to multiple circuits.

The input to the unit is via a standard 3m lead which feeds directly into a double pole MCB protecting each output. The output from each MCB feeds directly to a BS 4343 industrial socket. Above each output socket is a large high visibility neon indicator denoting power present.

The units are housed in a robust steel free standing case or can be supplied in a 4U 19” rack mounted enclosure. For additional safety, there is a screw down cover over the MCB’s to prevent accidental operation.

Cam Lock connectors:

For applications in the concert touring industry, units can be manufactured with Cam Lock connectors on the inputs. These are rated at 600 volts AC @ 400 amps.

Options:

∗ Additional length cables available to order.
∗ Input leads are supplied with BS 4343 (IEC EN60309-2) industrial connector as standard or can be supplied unterminated.
∗ Three phase versions available.
∗ Bespoke connector variations available to order.
